Topu Plastic honeycomb-Parameter

Items

Type A

Type B

Type C

Color

White

White

White

Cell core diameter(mm)

8

10

12

Density( Kg/m 3 )

80

75

70

Compressive Strength(MPa)

1.66

1.58

1.47

Modulus of compression(MPa)

45.7

41.2

38.9

Shear Strength(MPa)

0.5

0.45

0.4

Effective Temperature( ℃ )

-40 — +80

-40 — +80

-40 — +80

Thermal Insulation U-value(W/m 2 k)

2.2

2.2

2.3

Remark: All data are based on 30mm thickness honeycomb.

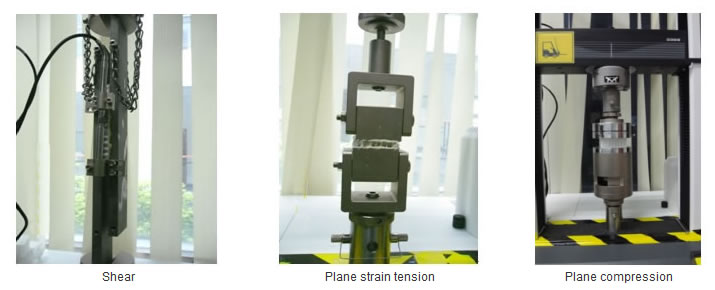

Test equipment:
