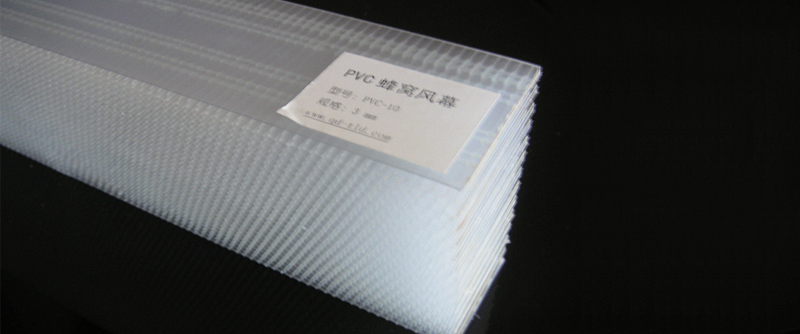

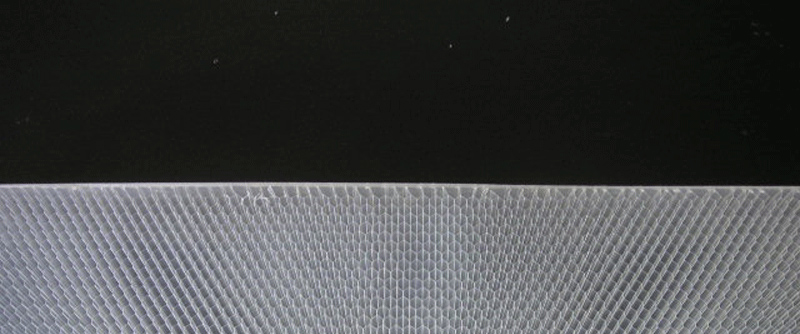

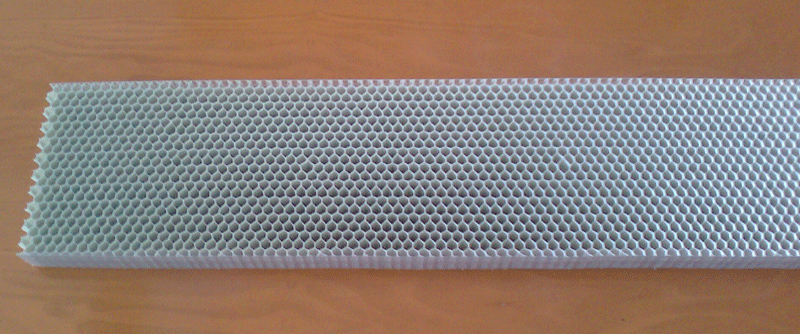

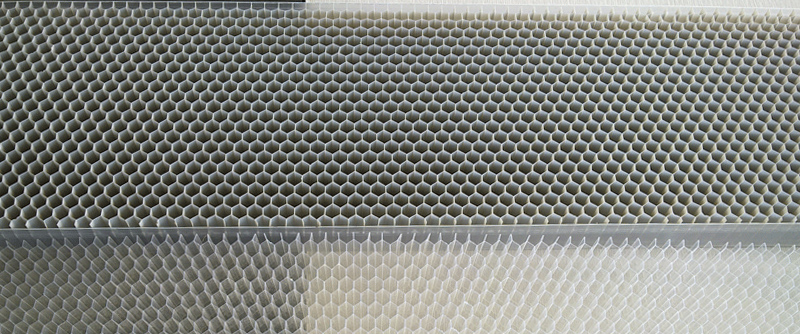

Name: Drift (Wind screen)

Application: Food display cabinets, freezers drift (Wind screen)

Usage: For the honeycomb used in display cabinet windscreen, its pore size is generally 4mm, with edge banding on both sides, its size is customized according to user requirements, with the shape of both flat and slope surface, simple to install.

Features: Air permeability rate is of 97%, deformation is small in low temperature, vertical is not greater than 3mm, horizontal is not greater than 1 mm, even air volume, low temperature resistance is up to -40℃, and it is beautiful.



  Material   Transparent PVC, PET sheet
  Cellular wall sheet
  Thickness
  0.1~0.15mm
  Specifications   Margins (Aperture)  S=3mm    S=4mm    S=6mm
  Size    According to user requirements
  Bulk density   80--140kg/m3
  Operating temperature   PVC  -40℃ -- +50℃    PET -40--+75℃
  Edge banding   on both sides
  Packaging   Cardboard box
